產品介紹 > 鋁合金圓鋸片 > 全系列鋁合金專用鋸
|
|
外徑 |
鋸路 |
本體 |
中心孔 |
齒數 |
齒型 |
中心角 |
品名 |
|
|
Diameter |
Kerf |
Plate |
Bore |
Teeth |
Grind |
Hook |
Item ID |
|
|
205 |
1.5 |
1.2 |
25.4 |
80 |
TCG |
10° |
NF20508015001 |
|
|
205 |
1.5 |
1.2 |
25.4 |
100 |
TCG |
10° |
NF20510015001 |
|
|
255 |
2.0 |
1.6 |
25.4 |
60 |
TCG |
10° |
NF25506020001 |
|
|
255 |
2.0 |
1.6 |
25.4 |
80 |
TCG |
10° |
NF25508020001 |
|
|
255 |
2.0 |
1.6 |
25.4 |
100 |
TCG |
10° |
NF25510020001 |
|
|
305 |
2.0 |
1.6 |
25.4 |
80 |
TCG |
10° |
NF30508020001 |
|
|
305 |
2.0 |
1.6 |
25.4 |
100 |
TCG |
10° |
NF30510020001 |
|
|
305 |
2.0 |
1.6 |
25.4 |
120 |
TCG |
10° |
NF30512020001 |
|
|
355 |
2.4 |
2.0 |
25.4 |
50 |
T2(AD) |
10° |
NF35505024001 |
|
|
355 |
2.4 |
2.0 |
25.4 |
60 |
T2(AD) |
10° |
NF35506024001 |
|
|
355 |
2.4 |
2.0 |
25.4 |
80 |
T2(AD) |
10° |
NF35508024001 |
|
|
355 |
2.4 |
2.0 |
25.4 |
120 |
TCG |
10° |
NF35512024001 |
|
|
380 |
2.2 |
1.8/2.6 |
25.4 |
100 |
TCG |
10° |
NF38010022001B |
|
|
405 |
2.5 |
2.1 |
25.4 |
80 |
T2(AD) |
10° |
NF40508025001 |
|
|
405 |
2.5 |
2.1 |
25.4 |
120 |
T2(AD) |
10° |
NF40512025001 |
|
|
405 |
2.8 |
2.4 |
25.4 |
80 |
T2(AD) |
10° |
NF40508028001 |
|
|
455 |
3.0 |
2.5 |
25.4 |
60 |
TCG |
10° |
NF45506030001 |
|
|
455 |
3.0 |
2.5 |
25.4 |
80 |
TCG |
10° |
NF45508030001 |
|
|
455 |
3.0 |
2.5 |
25.4 |
100 |
TCG |
10° |
NF45510030001 |
|
|
455 |
3.0 |
2.5 |
25.4 |
120 |
TCG |
10° |
NF45512030001 |
|
|
500 |
3.4 |
2.8 |
30 |
100 |
TCG |
10° |
NF50010034030 |
|
|
500 |
3.4 |
2.8 |
30 |
120 |
TCG |
10° |
NF50012034030 |
◎標示為常規品，特殊規格可依要求訂做。◎Could be customized to your requirement.

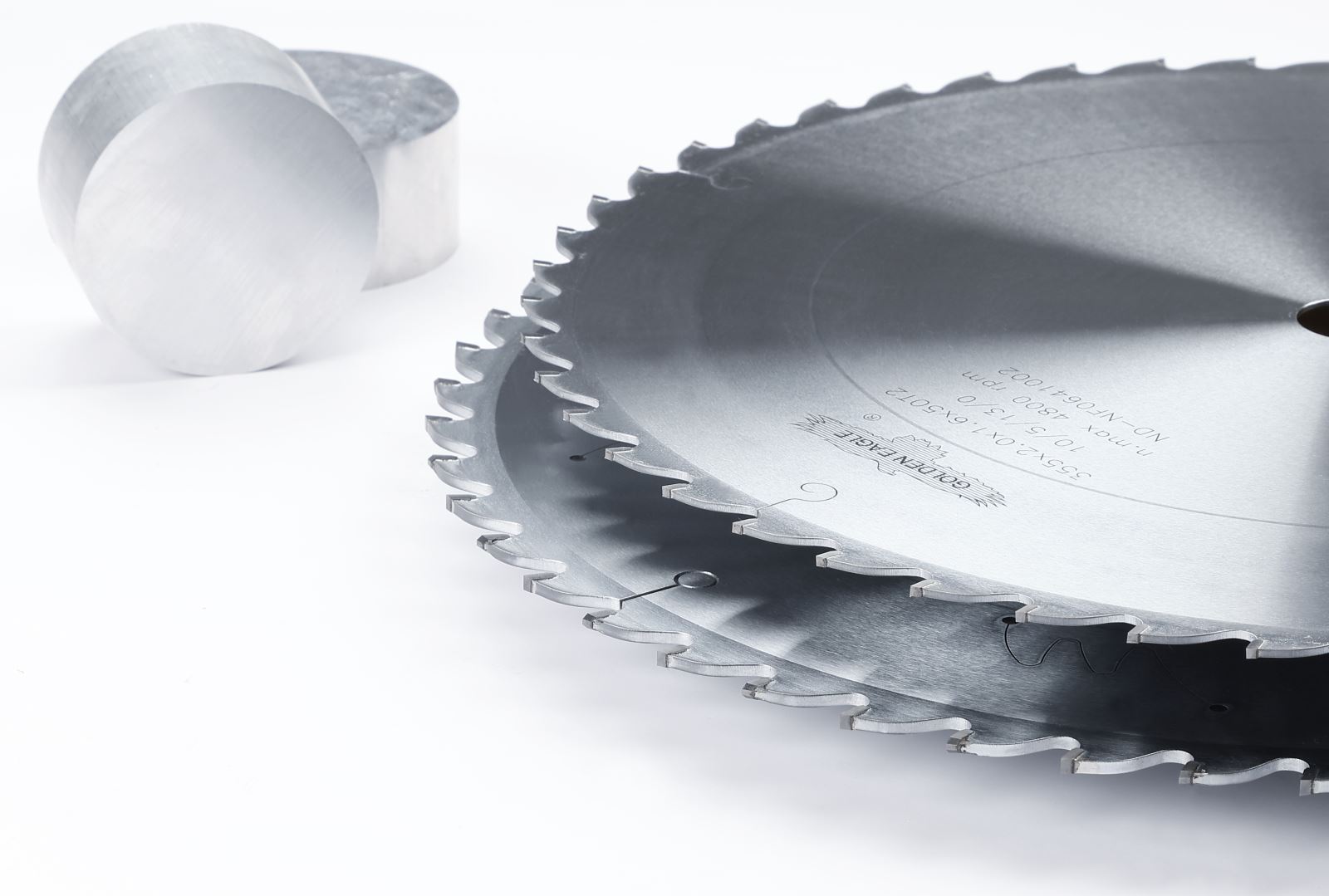

超薄鋁合金圓鋸片
特色:

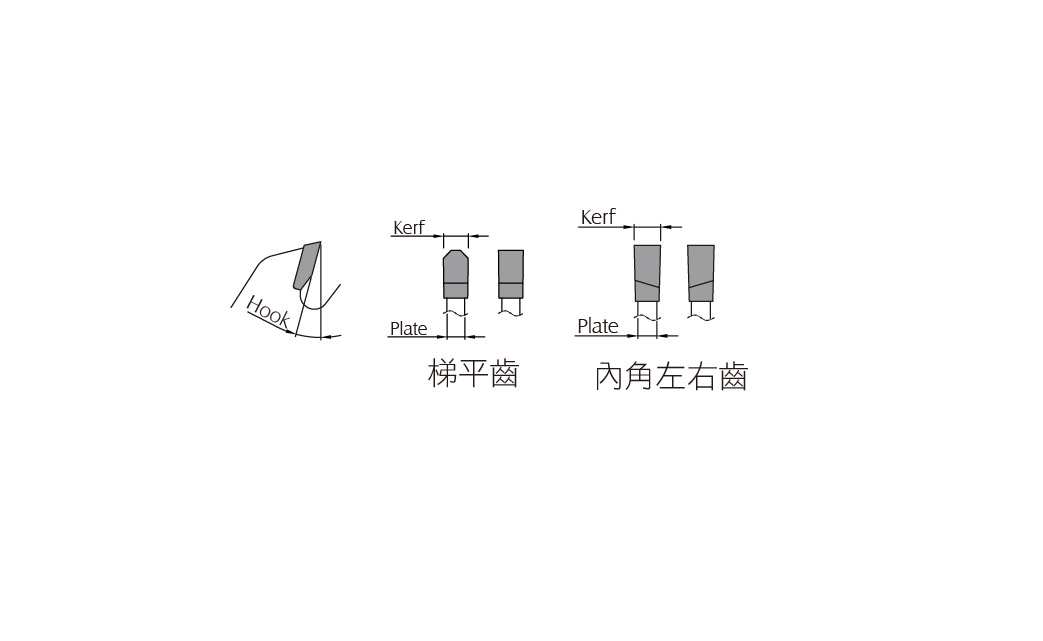

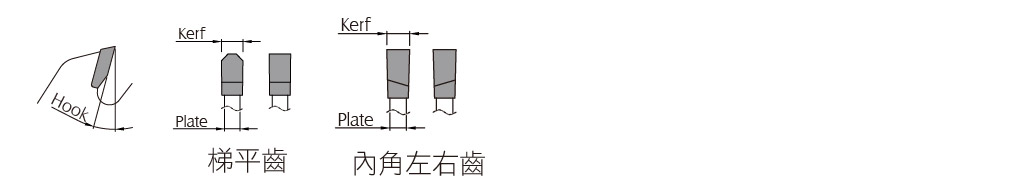

1、齒型為梯平齒、全平齒。梯平齒壽命最佳。全平齒切割阻力更小，切面更精細。
2、鋸路比常規款薄約0.5~1.0mm。每切一刀即可節省約0.5~1.0mm的材料
3、切割阻力變小，減輕設備的磨損
4、採用日本進口鋼材，增加鋼板穩定性，提升切割壽命以及穩定切割品質。

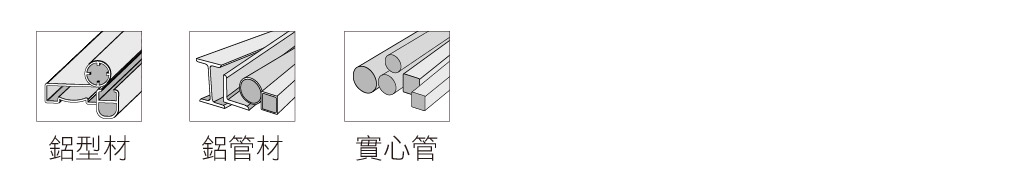

5、適用於裁切各種鋁型材、實心鋁、鋁方通等…..
