產品介紹 > 複合材料專用鋸 > 全系列複合材料
|
|
外徑 |
鋸路 |
本體 |
中心孔 |
齒數 |
齒型 |
中心角 |
品名 |
|
|
Diameter |
Kerf |
Plate |
Bore |
Teeth |

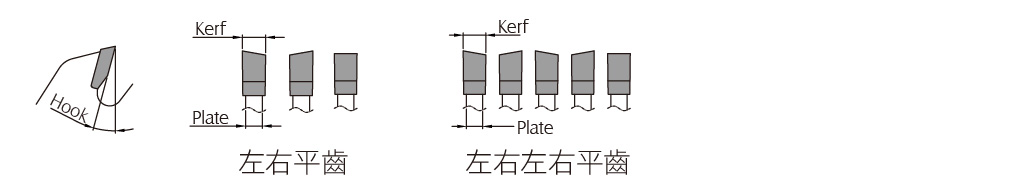

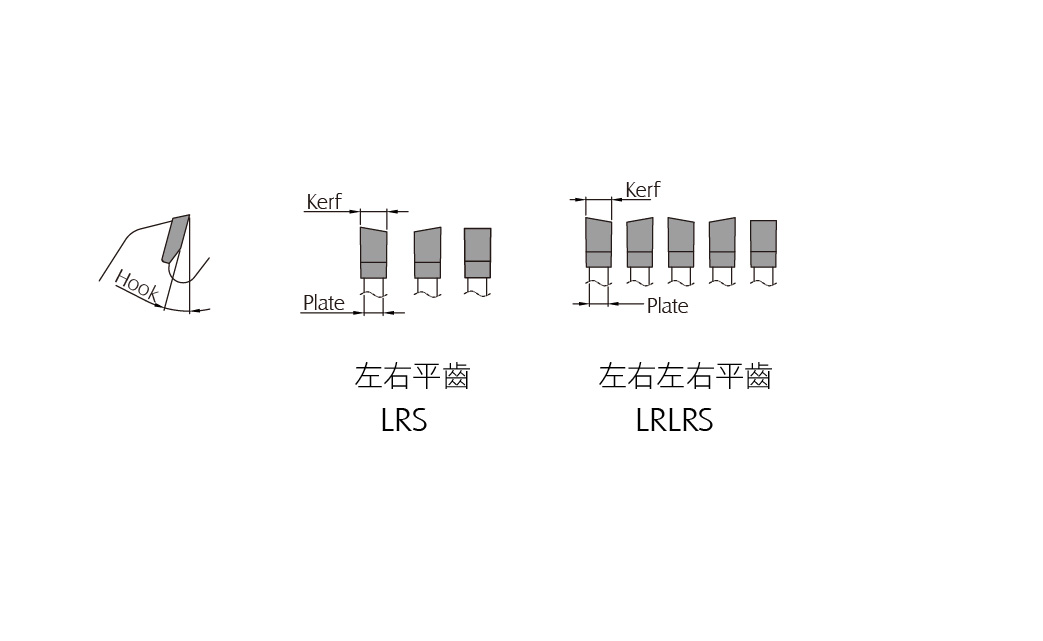

Grind |
Hook |

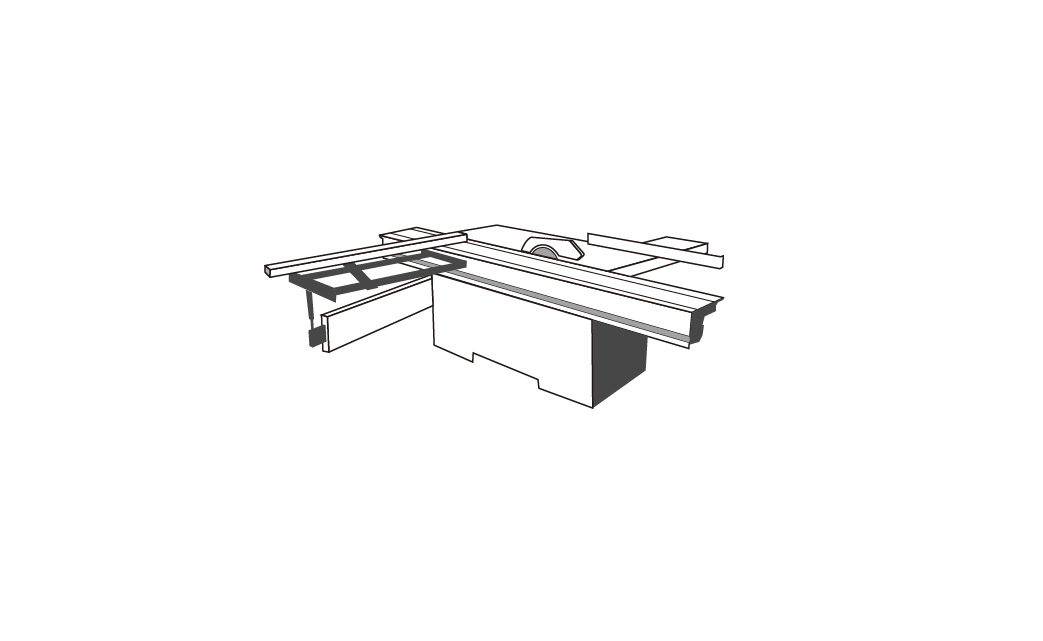

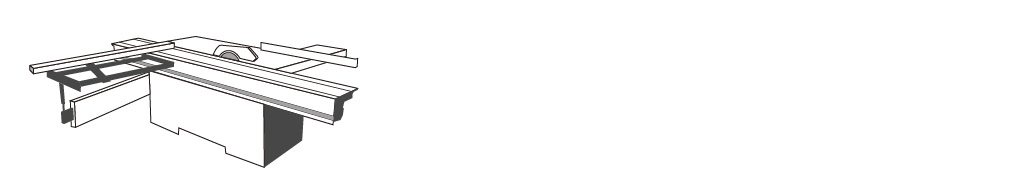

Machine |
|
|
195 |
2.0 |
1.5 |
25.4 |
90 |
20° |
LRS |
A19509020001 |
|
◎ |
255 |
2.0 |
1.5 |
25.4 |
84 |
20° |
LRS |
A25508420001 |
|
◎ |
255 |
2.0 |
1.5 |
25.4 |
100 |
20° |
LRLRS |
A25510020001 |
|
◎ |
255 |
2.0 |
1.5 |
25.4 |
120 |
20° |
LRLRS |
A25512020001 |
|
|
305 |
2.0 |
1.5 |
25.4 |
100 |
20° |
LRLRS |
A30510020001 |
|
|
305 |
2.0 |
1.5 |
25.4 |
120 |
20° |
LRLRS |
A30512020001 |
|
◎ |
305 |
2.6 |
2.0 |
25.4 |
100 |
20° |
LRLRS |
A30510026001 |
|
◎ |
305 |
3.0 |
2.2 |
25.4 |
100 |
20° |
LRLRS |
A30510030001 |
|
◎ |
305 |
3.0 |
2.2 |
25.4 |
120 |
20° |
LRLRS |
A30512030001 |
|
◎ |
355 |
2.6 |
2.0 |
25.4 |
120 |
20° |
LRLRS |
A35512026001 |
|
◎ |
355 |
3.0 |
2.2 |
25.4 |
120 |
20° |
LRLRS |
A35512030001 |
|
◎ |
355 |
3.2 |
2.4 |
25.4 |
120 |
20° |
LRLRS |
A35512032001 |
|
◎ |
405 |
3.2 |
2.4 |
25.4 |
120 |
20° |
LRLRS |
A40512032001 |
|
◎ |
405 |
3.0 |
2.2 |
25.4 |
120 |
20° |
LRLRS |
A40512030001 |
◎標示為常規品，特殊規格可依要求訂做。◎Could be customized to your requirement.
針對有機玻璃（壓克力）產品而設計的裁切角度，切割刀口細緻，無崩邊現象。加工時配合夾具固定加工物並調整適當的進刀速度，以達到精切效果，適合用於LED廣告背光板的加工。
